Margin

bkhtmltopdf supports page margin configuration via CSS @page rules, using margin-* properties to define top, right, bottom, and left margins. These margins affect the PDF's print layout, but note that they occupy space within the content area.

基本用法

Specify @page rules within @media print media queries:

<!doctype html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Margin Example</title>
<style>
@media print {
@page {
size: A5 landscape;
margin-top: 2rem;
margin-right: 2rem;
margin-bottom: 2rem;
margin-left: 2rem;
}
}
</style>
</head>
<body>
<h1>Hello World!</h1>
<p>Content will be affected by margins.</p>
</body>
</html>
tip

Units supported include mm, cm, in, px, em, and rem (based on root font size). Relative units (such as rem) are recommended to adapt to different page sizes.

Margin Effect Explanation

Page margins carve out blank areas within the @page region, preventing <body> content from filling the entire page. The following example illustrates the impact of margins.

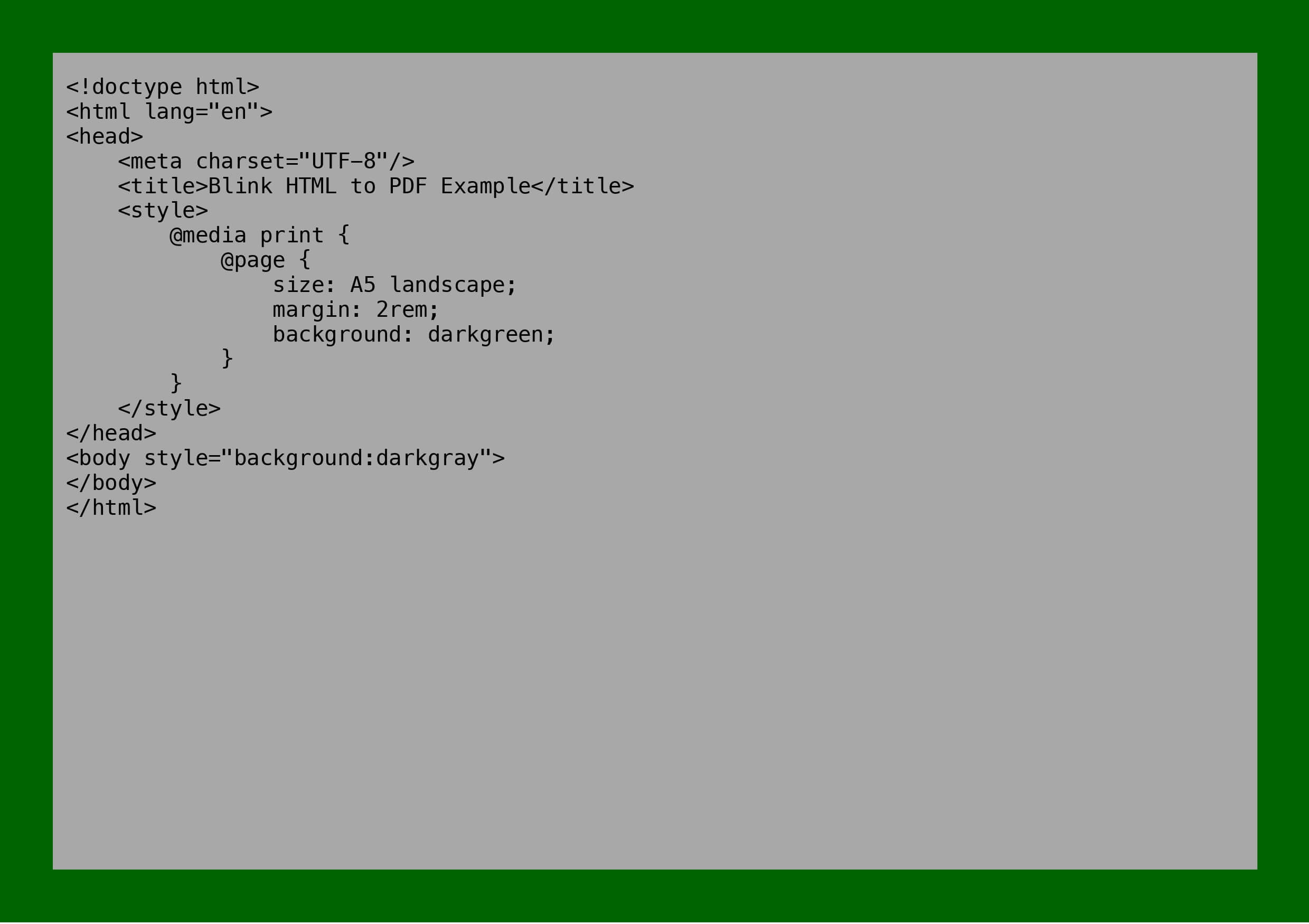

Margin example

As shown in the figure above, the content area is compressed by margins. In actual development, it is recommended to prioritize using the padding property of html and body over @page margins because:

  • padding does not occupy page space but expands the content container.
  • It integrates more easily with CSS frameworks.
  • It prevents unexpected clipping during printing.
/* In @media print */
body {
padding: 2rem; /* Equivalent to 2rem margin */
}

/* Or targeting html */
html {
padding: 1in 2cm; /* Top/Bottom 1in, Left/Right 2cm */
}
